Product detail
| Product code | Burkert |
| Applications | The regulating valves are intended for different media applications such as: · Cold and hot water · Air and neutral gases · Steam |

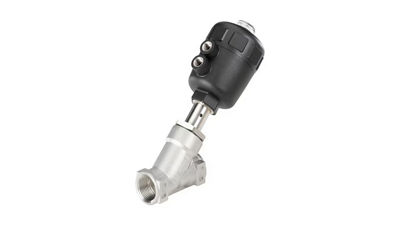

8802YG - Angle seat valves
Features & Benefits
- Spring return closed or open available
- Hard seat
- Self-adjusting packing glands, intermediate relief and wiper.
- Stainless steel valve body material.
- Media temperature -10 to 180 degree C
- Media pressure max 16 bar (Steam max 10 bar)
- Welded or threaded variants available
- 8694 Top control or 8792 Remote control w display
- PID controller available
- 2702 - Manual: Version of 8802YG with manual operation

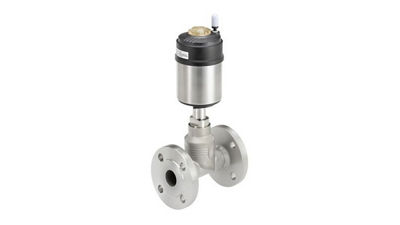

8802GB/8802GD - Globe valves
Features & Benefits
- Spring return closed or open available
- Hard seat
- Self-adjusting packing glands, intermediate relief and wiper.
- Stainless steel valve body material.
- Media temperature -10 to 180 degree C
- Media pressure max 16 bar (Steam max 10 bar)
- Welded or threaded variants available
- 8694 Top control or 8792 Remote control w display
- PID controller available
Technical specifications
| Product code | Reducing valves - Samson- 41-23, Direct acting - Large capacity |
| Max. product pressure | 1000 kPa (10 bar) |
| Temperature range: | -10°C to + 140°C (EPDM) However max. 95°C when operating the valve |
| Actuator | Max. air pressure: 700 kPa (7 bar) |

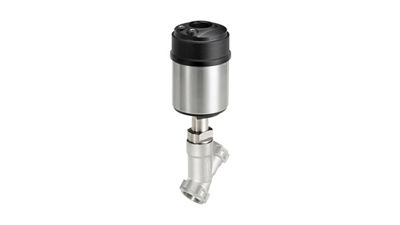

8802YG W SMS 3008 NO SS/SS
Features & Benefits
- 2/2 ways NO angle seat control valve
- 8694 Top Control Positioner
- Connection: SMS 3008 welding
- El. connection: M12, 8 pin
- Body material: Stainless steel 316L
- Process sealings: 316L
- Actuator: 70/90
8802YG W SMS 3008 NC SS/PTFE
Features & Benefits
- 2/2 Ways NC angle seat control valve

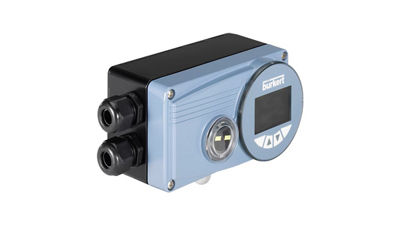

- 8792 Remote positioner w display
- Connection: SMS 3008 welding
- El. connection: Cable gland M20x1.5
- Body material: Stainless steel 316L
- Process sealings: 316L/PTFE
- Actuator: 70/90
