Alfa Laval LeviMag magnetic mixers offer effective mixing for multiple processes within Dairy, Beverage and Food applications - eg. aseptic or sterile storage or buffer tanks - where high demands on hygienic and aseptic design are required.

Due to the compact design the LeviMag is also an obvious choice for low level agitation.

Product detail

Product code Magnetic mixer
Capacity Depending on duty and media properties the LeviMag can be configured to be used in tanks from 30 l. to 40.000 l.
Applications Dairy, Beverage and Food applications

Maximize process economy,
minimize product loss

  • Optimized flow with higher efficiency and less energy consumption
  • Mixing down to the last drop for maximum yield due to low agitation and dry-running capability
  • Optimized Cleaning-in-Place thanks to full drainability
  • Minimized downtime due to ease of maintenance
Alfa Laval Magnetic mixer Maximize process economy, minimize product loss

Technical specifications

Product code Magnetic mixer
Capacity Depending on duty and media properties the LeviMag can be configured to be used in tanks from 30 l. to 40.000 l.
Applications Dairy, Beverage and Food applications

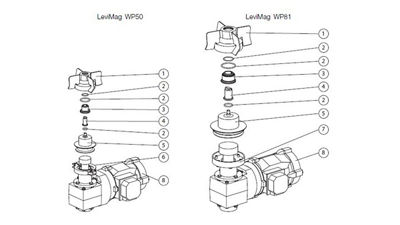

Magnetic mixer Build up

Build up:


1. Impeller
2. Seals
3. Female Bearing
4. Male Bearing
5. Weld Plate
6. Clamp ring connection (WP50 only)
7. Flange-Bolt Connection (WP81 only)
8. Drive unit

Unique features


  • Levitated design: Makes the bearing fully drainable and minimize wear of the bearing.
  • Replacable bearings: Both the female and the male bearing can be replaced by the end user on site.
  • High efficiency impeller: The impeller unit is flow optimized, which creates the possibily of gentle product treatment
  • Mixing to last drop: Dry running capability makes it possible to achieve maximum yield.
