Product detail
| Product code | Spirax Sarco |
| Applications | The valve is intended for leak free operation in different media applications such as: · Steam, gas · Liquid · Condensate, water systems |
Manual bellows sealed shut off valve type BSA1T
The valve is intended for leak free operation in different media applications such as:
- Steam, gas
- Liquid
- Condensate, water systems
Standards: The product fully complies with the requirements of the Pressure Equipment Directive (PED) and carries the CE mark when so required.
Manual shut off valve type HV3
Application
The valve is intended for different media applications such as:
- Steam, water, oil, air
Benefits
- DCV3 fits between flanges
- Austenitic stainless steel body for aggressive fluids, vapour, acids and alkalines
- Compact design compared to a sving check valve
- Cast iron or Cast steel valve body material.
- Media temperature –10 to 220 degree C
- Pressure class PN16 (cast iron) PN 40 (cast steel)
- DIN or ANSI flanges available
Technical specifications
| Product code | Spirax Sarco |
| Applications | The valve is intended for leak free operation in different media applications such as: · Steam, gas · Liquid · Condensate, water systems |
Manual bellows sealed shut off valve type BSA1T
Bellows sealed stop valve
| Connection | Flange EN 1092 PN16 |
| Max temperature | 300ºC |
| Material body | Cast iron |
| Material valve/seat | SS/SS |
| Stem packing | Graphite |
Picture showing BSA1

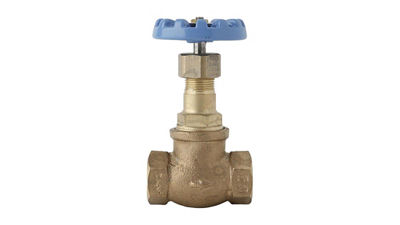

Manual shut off valve type HV3
Stop valve / Globe seat valve
| Connection | Threaded BSP parallel |
| Max temperature | 260ºC |
| Material body | Gunmetal |
| Material valve/seat | SS/SS |
| Gland packing | PTFE |
