Información rápida

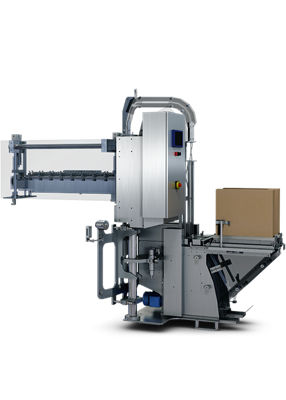

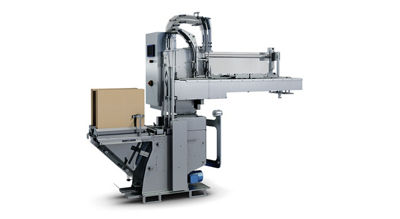

Unidad para la inserción de palitos desagregados (envasados en cartones al por mayor) en helados moldeados
Capacidad:
Hasta 30 carreras por minuto o 40 000 productos por hora
Aplicaciones:
Palitos rectos o con forma de paleta, redondeados, simples/dobles y especiales (en helados, granizados y helados de agua)
Proven reliability and performance
- Highly reliable, high performance unit, with 100+ machines in operation worldwide
- Accurate and hygienic operation thanks to a single piece conveyor belt
- Each process step is designed to ensure the gentle handling of sticks and thereby minimize waste
Características
Backup stick magazine
High uptime
If the stick supply is interrupted by, for example, an off-spec stick, a built-in sensor detects the lack of motion and activates the back-up stick magazine instead. This occurs without any break in production.
High capacity stacker (multi)
Enables high speed operation
The high capacity stacker takes the sticks from the boxes and neatly organises them into the vertical feeding stack. This makes it possible to insert 42 000 sticks per hour, or up to 30 strokes per minute.
Servo controlled belt
Exact stick positioning
The combination of servo controls with precisely positioned grooves on the belt makes it possible to catch the sticks and deliver them in exactly the right position, even at very high speeds.

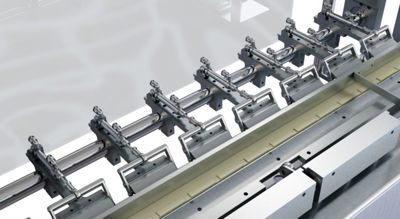

Insertion mechanism
Enhances production reliability and yield
This feature reduces the unit’s sensitivity to deviations in operating parameters. Even if the stick is not inserted in the perfect position on the mould table, it will still be positioned correctly in the product for pick-up, and the machine will continue to function.

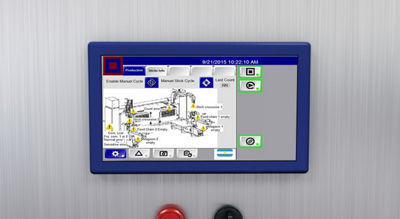

User-friendly operator panel
Enables product repeatability
Pre-set recipes for each product are stored in the control system, so operating staff just have to press a single button at start-up. The system continuously monitors stacking and dispensing operations, and sounds the alarm if – for example - a stick is missing. The operator can then immediately address the problem, and production continues with the support of the back up magazine.
Opciones
Feeding arch and dispensing belt module
Enables varied stick sizes
The standard feeding arch and dispensing belt module can be switched to an optional one equipped to handle sticks of a different length or width.
Round stick dispensing module
Enables the use of cylindrical sticks
The standard feeding arch is replaced with a round stick dispensing module, which is a manually filled magazine, making it possible to apply cylindrical shaped sticks.
