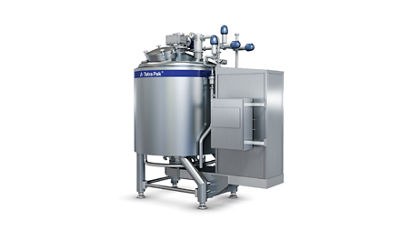

Informazioni rapide
Miscelazione ed emulsificazione di prodotti ad alta e bassa viscosità e dissoluzione delle polveri in un solo processo.
CAPACITÀ
Da 25 a 20.000 l/ora; 1-4 lotti/ora
APPLICAZIONI
Formaggio spalmabile, prodotti lattiero-caseari formulati, concentrati di bevande, zuppe, salse, condimenti, guarnizioni per gelato e molto altro.
Versatile ingredients mixing
- Product versatility thanks to dynamic stator and double shaft agitator
- Choice of heating methods enables adaptation to specific products
- High operational reliability, supported by Tetra Pak’s unique powder valve
Caratteristiche
Dynamic stator
Eliminates the need for multiple tanks
A dynamic stator in the Turbo Unit – a patented technology from Tetra Pak® - is pneumatically lowered to allow high shear mixing. When raised, the stator enables blending without shear for the addition of larger particles.
Double shaft agitator
Enables processing of highly viscous products
With very viscous products (up to 100 000 cP) uneven mixing can occur. In this unit, a double shaft agitator ensures all the product comes into contact with the high shear head, and is thereby properly mixed.

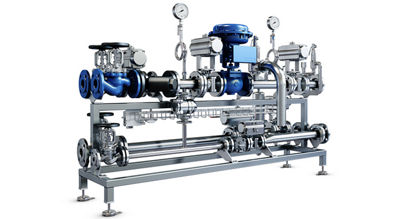

Flexible heating methods
Choose the method to suit your product
Depending on the application, various heating and cooling systems are available to control product temperature. In applications where ultra fast and gentle product heating is required the Tetra Pak® High Shear Mixer comes with a steam injection system. With the addition of a dimple jacket lining the tank, you can heat and cool especially sensitive products and avoid burn-on of for example proteins.
Powder valve
Enables trouble-free powder handling
The powder valve is unique to Tetra Pak®'s high shear mixers. It closes immediately if there is a loss of vacuum for any reason. This eliminates the risk of back flow into the powder system, and prevents blockages, which would stop production.
Choice of dosing systems
Helps you control costs
This unit offers the choice of dosing powder ingredients automatically or manually. Automatic dosing works in a controlled and reliable manner. It draws ingredients into the mixer, eliminating the need for an operator. On the other hand, manual dosing is a good solution for price sensitive customers, enabling us to offer a Tetra Pak® High Shear Mixer at a lower investment cost.
Opzioni
Pressure vessel
Enables high temperature cooking for increased shelf-life and faster batch times.
When heating a product over 100°C and up to 150°C, a pressure vessel is needed to guarantee safety. Tetra Pak® provides pressure vessels for use in conjunction with our High Shear batch mixer, certified according to European PED directive EN97/23EC or U-stamped USA ASME standard.
Flash cooling
Rapid and energy efficient cooling
By adding a plate heat exchanger and a vacuum system to the Tetra Pak® High Shear batch mixer, you can achieve rapid and energy effective cooling of products. Having been pasteurised to kill any microorganisms, products such as soups and sauces can be cooled from 90°C to 50°C in 6 minutes, making them ready for immediate packing.
Embedded automation
Make the most of your mixer
Get more smart functions and effortless integration with seamless, robust automation based on Tetra Pak® PlantMaster technology, including:
- Automatic update for all variant recipes within minutes, thanks to ingredient tagging
- Fast, easy CIP program changes with remote support from process engineer – no site visit needed
- Faster powder addition
- Lower product losses
- Fewer/shorter stops
- Full traceability and uncompromising food safety
