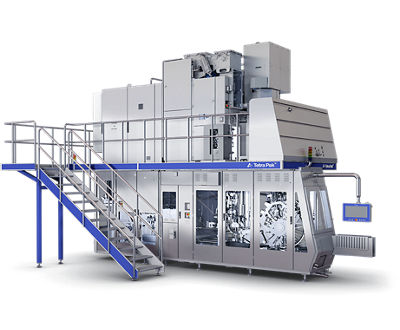

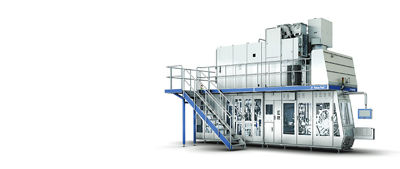

アセプティック充填には真の適応性と柔軟性が不可欠です。テトラパック® A3/Flex 充填機はその両方を提供します。容量変換キットがあれば新たな機械投入は不要です。異なる底部を採用した容器包装へ切り替えて、投資を保護することができます。さらに、QuickChange™ があれば、下部断面が同じ紙容器間の切り替えが迅速になり、柔軟な運用で市場の変化に即座に対応します。これを最高の食品の安全性基準を満たすシームレスな一体型キャップと高度な滅菌と組み合わせて、俊敏性、効率、市場ニーズのすべてに対応するよう設計されたシステムを入手しましょう。スマートに始めめて、素早く成長。
特長
Automatic material supply
Uninterrupted production
There's no need to halt production in order to refill with packaging material or strips since both are replaced automatically. Automation also ensures that splices between packaging material reels and strip applications are of consistent, repeatable quality.
Aseptic zone
Ensures aseptic conditions in an economical way
The flow of sterile air needed to maintain aseptic conditions is fully controlled in a closed loop, and designed to auto-correct if deviations occur. The smallness of the aseptic zone leads to savings in the consumption of both power and peroxide.
Deep peroxide bath
For safer packaging material sterilisation
A peroxide bath, as opposed to a spray system, sterilises the packaging material inside and out. A special thermal carpet keeps the peroxide bath at the optimum sterilisation temperature.
Servo driven jaw system
Adding flexibility and reducing waste
Using servo-motors, the jaw system profile is created in a software model rather than mechanically. This facilitates rapid conversion between different kinds of package production. Profiles are optimised to give better looking packages; printed package designs are synchronised to reduce waste.

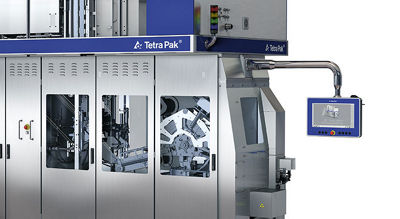

Operator interface
Enabling operators to work swiftly and efficiently
Several factors contribute to the easy operation of this filling machine: the Tetra Pak Operator Panel with its intuitive touch screen interface; large windows through which operators can observe production at first hand, and ground level access to essential working parts.
PLMS centre
Operational control and performance analysis
The PLMS centre automatically collects production data from the automation platform. To this, the operator can add his own observations. Improvements in production efficiency can then be made on the basis of the two.

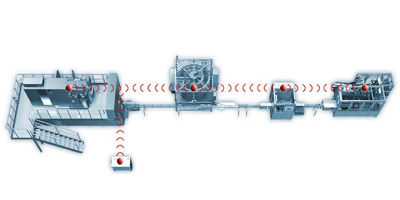

iLine automation platform
More reliable production
As the filling machine is an integrated part of the line it communicates with all the other line equipment. Sterilisation, filling and sealing processes are continuously controlled, increasing the output of 'on-target' packages. This feature also enables selectable capacity for compatibility with existing processing or downstream equipment.

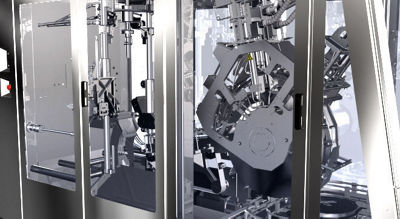

Improved final folder design
Turning out better looking packages, faster
Packages are released from the machine in an upright position, which simplifies the production process and increases reliability. Servo-motors accelerate the final folding process to give a good package shape and high capacity. They also enable the production flexibility offered by QuickChange and Volume Conversion functions.
